| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO, CE |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 30-45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15 Sets per Month |
| Name: | Small Scale Bottle Filling Machine | Dimension(L*W*H): | 1100*1050*1800mm |
|---|---|---|---|
| Bottle Type: | PET Plastic Glass Bottle | Capacity: | 2000 Bottles Per Hour |
| Condition: | New | Bottle Height: | 160-300mm |
| Filling Material: | Milk,pure Water,juice,tea Etc | Function: | Bottle Washing Filling Capping |
| Highlight: | 2000 BPH Filling Line,Rotary Milk Bottle Filling Line,Milk Bottle Filling Machine |
||

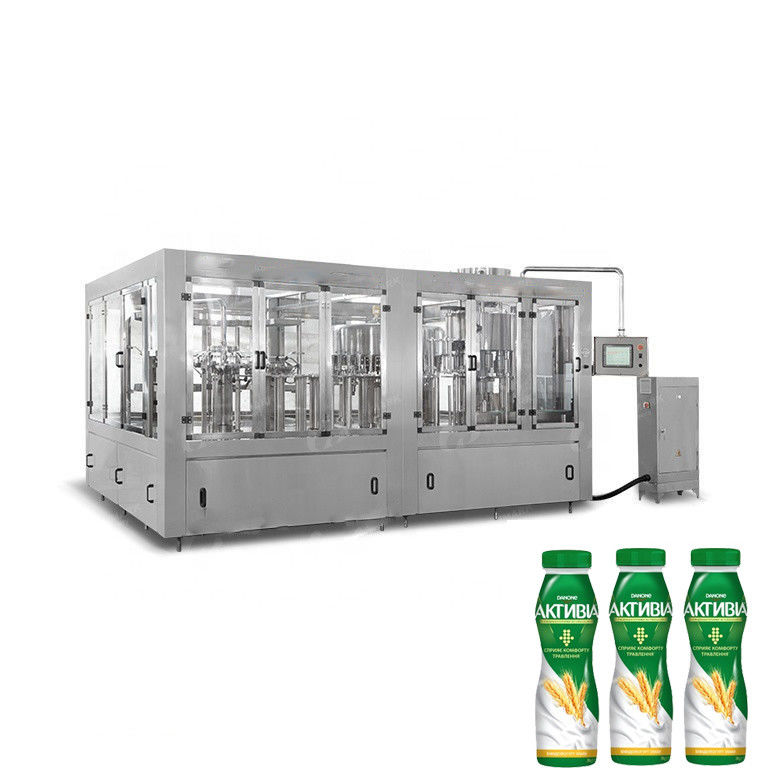

2.25kw Rotary Milk Bottle Filling Line
Keywords
Milk Filling Line
PLC Control Milk Filling Line
Multifunctional Milk Filling Line
Rotary Milk Bottle Filling Line
UHT Milk Production Line
Milk Bottling Equipment
Milk Bottling Plant
Monoblock Liquid Filling Machine
Technical parameter
|
Production capacity |
2000BPH |
|
Number of washing head |
12 |
|
Number of filling head |
12 |
|
Number of capping head |
1 |
|
Diameter of bottle |
62-100mm |
|
Height of bottle |
160-300mm |
|
Bottle volume |
250,375,500,625ml |
|
Bottle/can type |
PET,PVC,Plastic bottle |
|
Filling pressure |
0.2-0.3Mpa |
|
Filling temperature |
Normal temperature |
|
Cap type |
Screw type |
|
Power |
2.25kw |
Application
1. This Wash-filling-capping 3-in-1unit is used to produce polyester bottled mineral water, purified water, milk, alcoholic beverage machinery and other non-gas beverage machinery. It can finish all the process such as press bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
2. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
3. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

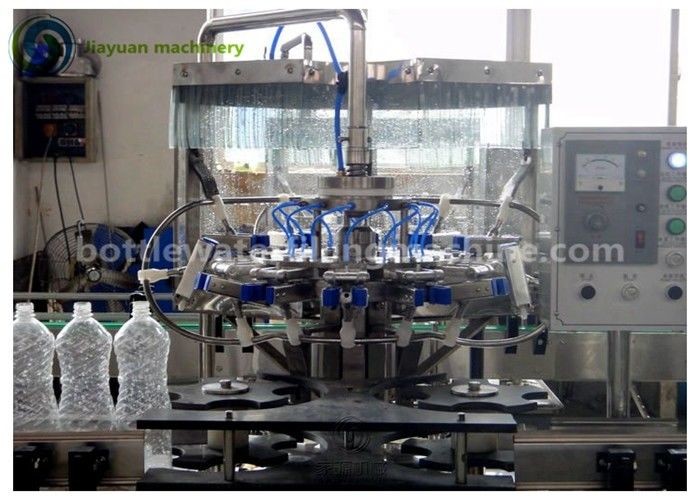

4. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

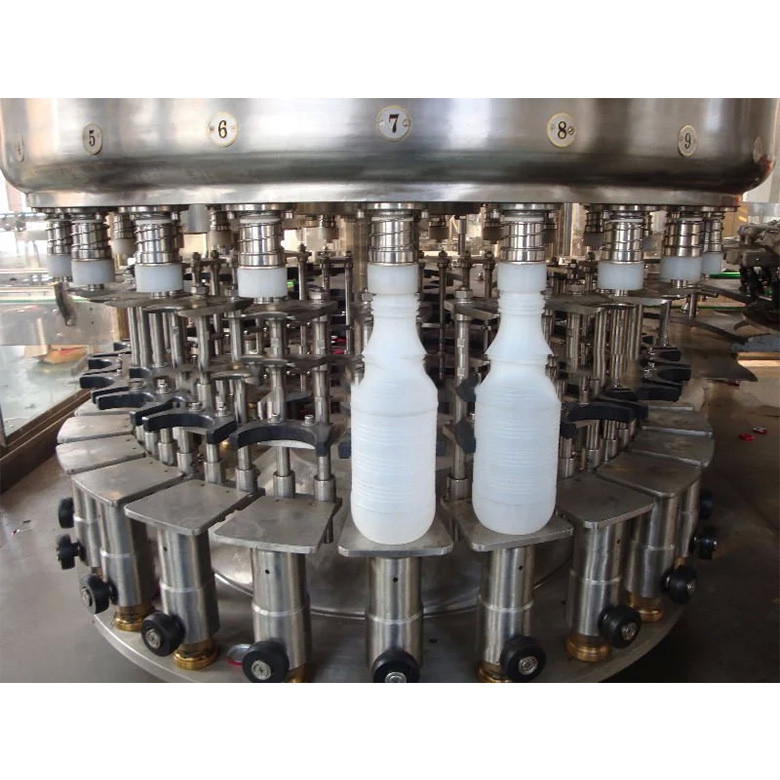

5. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
6. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
